Monday, March 21, 2011

Multiple ListView and custom listview example with click listener functions

Multiple listview can be placed inside a Activity. Here i am having two listviews

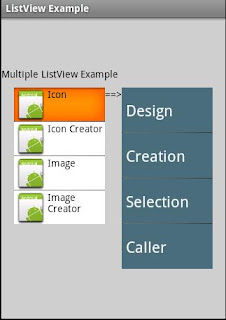

As shown in the above image, the left side displaying list view is customized listview, it that listview we will be showing a imageview and a textview, On clicking the item of that listview, the second listview will be generated.

The xml layout for that page will be like this


main.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="vertical" android:layout_width="fill_parent" android:gravity="center"
android:layout_height="fill_parent" android:background="#cccccc">
<TextView android:layout_width="fill_parent" android:textColor="#000"
android:layout_height="wrap_content" android:text="Multiple ListView Example" />
<LinearLayout android:orientation="horizontal" android:layout_marginTop="10dp" android:gravity="center_horizontal"
android:layout_width="fill_parent" android:layout_height="wrap_content">
<ListView android:id="@+id/ListView1" android:layout_width="130dp"
android:background="#fff" android:cacheColorHint="#fff"
android:layout_height="wrap_content" />
<TextView android:text="==>" android:layout_height="wrap_content" android:textColor="#000"
android:layout_width="wrap_content"></TextView>
<ListView android:id="@+id/ListView2" android:layout_width="130dp"
android:background="#4c6f7e" android:cacheColorHint="#4c6f7e"
android:layout_height="wrap_content" />
</LinearLayout>

</LinearLayout>


For the customized listview the coding will be like this, it will show the customized listview with a imageview and textview for each item


Java

private String[] list1 = {"Icon", "Icon Creator", "Image", "Image Creator"};
private ListView lister1;
lister1=(ListView)findViewById(R.id.ListView1);
ItemsAdapter itemsAdapter = new ItemsAdapter(
ListViewExample.this, R.layout.list,
list1);
lister1.setAdapter(itemsAdapter);


In the above example we need to explicitly use a layout, the layout will be


list.xml

<?xml version="1.0" encoding="utf-8"?>
<LinearLayout xmlns:android="http://schemas.android.com/apk/res/android"
android:orientation="horizontal"
android:layout_width="100dp"
android:layout_height="fill_parent"
>
<ImageView
android:layout_width="wrap_content" android:layout_height="wrap_content"
android:src="@drawable/icon" android:id="@+id/image"/>
<TextView android:textColor="#000"
android:layout_width="fill_parent"
android:layout_height="wrap_content"
android:text="" android:id="@+id/desc"
/>
</LinearLayout>



For the second listview, is normal listview, which is used with the pre defined layout android.R.layout.simple_list_item_1

The full ListViewExample.java file will be like this


ListViewExample.java

package com.list.viewer;

import android.app.Activity;
import android.content.Context;
import android.os.Bundle;
import android.view.LayoutInflater;
import android.view.View;
import android.view.ViewGroup;
import android.widget.AdapterView;
import android.widget.ArrayAdapter;
import android.widget.BaseAdapter;
import android.widget.ImageView;
import android.widget.ListView;
import android.widget.TextView;
import android.widget.AdapterView.OnItemClickListener;

/** http://www.android-codes-examples.blogspot.com/ */
public class ListViewExample extends Activity {

private String[] list1 = { "Icon", "Icon Creator", "Image", "Image Creator" };
private String[] list21 = { "Design", "Creation", "Selection", "Caller" };
private String[] list22 = { "Investor", "Producer", "Controller",
"Publisher" };
private String[] list23 = { "Designer", "Maker", "Creator", "Asignment" };
private String[] list24 = { "Arranger", "Caller", "Solution", "Result" };

private ListView lister1;
private ListView lister2;

/** Called when the activity is first created. */
@Override
public void onCreate(Bundle savedInstanceState) {
super.onCreate(savedInstanceState);
setContentView(R.layout.main);
lister1 = (ListView) findViewById(R.id.ListView1);
lister2 = (ListView) findViewById(R.id.ListView2);
ItemsAdapter itemsAdapter = new ItemsAdapter(ListViewExample.this,
R.layout.list, list1);
lister1.setAdapter(itemsAdapter);
lister2.setAdapter(new ArrayAdapter(ListViewExample.this,
android.R.layout.simple_list_item_1, list21));
lister1.setOnItemClickListener(new OnItemClickListener() {

@Override
public void onItemClick(AdapterView arg0, View arg1,
int positon, long arg3) {
String[] lister = null;
switch (positon) {
case 0:
lister = list21;
break;
case 1:
lister = list22;
break;
case 2:
lister = list23;
break;
case 3:
lister = list24;
break;
default:
lister = list21;
}
lister2.setAdapter(new ArrayAdapter(
ListViewExample.this,
android.R.layout.simple_list_item_1, lister));
}
});
}

private class ItemsAdapter extends BaseAdapter {
String[] items;

public ItemsAdapter(Context context, int textViewResourceId,
String[] items) {
this.items = items;
}

@Override
public View getView(final int position, View convertView,
ViewGroup parent) {
TextView mDescription;
View view = convertView;
ImageView image;
if (view == null) {
LayoutInflater vi = (LayoutInflater) getSystemService(Context.LAYOUT_INFLATER_SERVICE);
view = vi.inflate(R.layout.list, null);
}
image = (ImageView) view.findViewById(R.id.image);
mDescription = (TextView) view.findViewById(R.id.desc);
mDescription.setText(items[position]);
image.setBackgroundResource(R.id.image);
return view;
}

public int getCount() {
return items.length;
}

public Object getItem(int position) {
return position;
}

public long getItemId(int position) {
return position;
}
}
}




The full source code

Download source


Have a good day.
